Pre-Pack Integrated Pre-Action System
Model

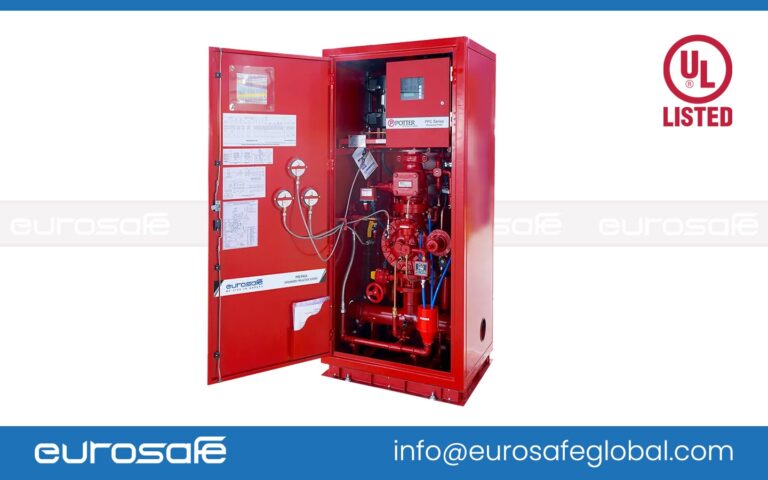

EUROSAFE Pre-Pack is a pre-assembled Pre-Action System enclosed in cabinet. Pre-action systems are designed for water sensitive areas that require protection from inadvertent water flow into the sprinkler system piping. Eurosafe Pre-Pack system comes with grooved ends to provide minimum installation time. It comes in a compact, space saving, self-standing cabinet while providing an aesthetically pleasing appearance.
Features
- Professionally pre-assembled and factory tested
- Internally wired
- Quick and convenient installation
- Compact, space saving and aesthetically pleasing appearance
- Custom manufactured
- UL Listed
Technical Data
| Specification | Details |
|---|---|
| Size | 50, 80, 100, 150 & 200 NB |
| Deluge Valve | Model ES0201, UL Listed |
| Riser Check Valve Model | CH |
| Water Motor Gong Bell | UL Listed (Optional supply) |
| Maximum Working Pressure | 17.5 kg/sq.cm (250 psi) |
| System End Connection | Grooved – Standard supply Flanged – Optional supply |
| Release Panel | POTTER, UL Listed (Optional) |
| Water Flow Switch | POTTER, UL Listed |
| Low Pressure Alarm Switch | POTTER, UL Listed |
| Solenoid Valve | Normally closed, 24 VDC, UL Listed |
| Manual System Shut Off Valve | Butterfly Valve, UL Listed (With Tamper Switch) |
| Automatic Air Supply | Oil Less Riser Mounted Compressor (Optional) |
| Type | Single Interlock – Wet Pilot Single Interlock – Dry Pilot Single Interlock – Electric Double Interlock – Electric/Pneumatic Double Interlock – Electric/Electric |
| Cabinet | 14 SWG, Red Finish (RAL 3001) |
| Approval | UL Listed |
